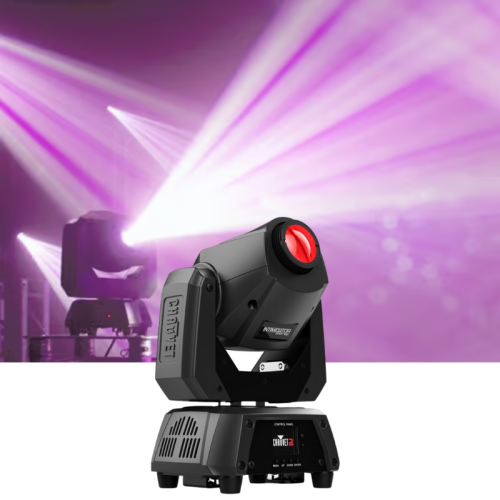

The Intimidator Spot 160 is the ultimate in small yet powerful moving-head lights. Packed with features, this moving head is perfect for on-the-go performances, thanks to CHAUVET DJ’s clever Totem mode that keeps the light beams shining right on the dance floor.
You can connect up to 4 of these lights together to create captivating, synchronized displays in either Automated or Sound mode.
Programming can be arranged based on your requirements. Please contact our office with your requirements for an exact quote.
Specifications
- DMX Channels: 5 or 11
- DMX Connectors: 3-pin XLR
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
- Colors: 9 + open, split colors, continuous scroll at variable speeds
- Gobos: 9 + open (9 aluminum), continuous scroll at variable speeds
- Light Source: 1 LED (cool white) 32 W, (2.3 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- PWM Frequency: 2.4 kHz
- Beam Angle: 17°
- Illuminance: 6,080 lux @ 2 m
- Power Linking: 9 units @ 120 V; 16 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 60 W, 0.8 A @ 120 V, 60 Hz
60 W, 0.4 A @ 230 V, 50 Hz - Weight: 8.8 lb (4.0 kg)
- Size: 8.2 x 5.9 x 12 in (207 x 149 x 308 mm)
- Approvals: CE
- Bracket Mounting Hole:: M12
- Optional Controllers:: IRC-6
How do I get the best effect out of this light?
To get the best effect from this light we suggest using it with a smoke or haze machine so that you will see all the beams of light. Without a smoke machine you will only see dots on the walls and not the laser like beams when used with smoke.
